Cilium Gateway API Resources for vCluster Tenant Clusters on RKE2 | Grafana Authentication with Keycloak
Summary:
While in the vCluster and Cilium Gateway API post, we explored how to share Gateway API resources between the Control Plane and the tenant cluster using a simplistic NGINX application; today, we take a step further, and we combine all the parts of the series to demonstrate how Grafana performs OpenID Connect (OIDC) authentication using Keycloak.
Introduction
The NGINX example in the previous post did not satisfy me, so I decided to provide an example that covers a commonly used operations task. With an existing Keycloak deployment, I enabled Grafana OIDC authentication using Keycloak and combined everything we covered throughout the series. Both Keycloak and Grafana are exposed via HTTPRoute resources using the Cilium and Gateway API integration, with the only difference being that the Keycloak deployment is on a Services cluster in a different network segment. The post aims to provide a comprehensive deployment and troubleshooting section outlining some of the gotchas through the setup.
Terminology
- Gateway API: Is an official Kubernetes project focused on L4 and L7 routing, and it is the next generation of the Kubernetes Ingress, Load Balancing, and Service Mesh APIs
- Grafana: Is an open-source analytics and visualisation platform used for interactive dashboard creation
- Keycloak: Is an open-source identity and access management solution
- OIDC: Is an identity authentication protocol built on top of the OAuth 2.0 framework that verifies users’ identities and enables Single Sign-On (SSO)
Lab Setup
+-------------------------+--------------+------------------+
| Resources | Type | Version |
+-------------------------+--------------+------------------+
| Control Plane Cluster | RKE2 | v1.35.6+rke2r1 |
| vcluster-team-d | K8s | v1.36.0 |
| kube-prometheus-stack | Helm Chart | v88.6.0 |
| Cilium | CNI | v1.19.4 |
+-------------------------+--------------+------------------+
The Control Plane cluster is the cluster that hosts the virtualised control planes for the tenant clusters.
Prerequisites
Go through parts 1 to 5 of the series to gain a better understanding of the concept and what we aim to achieve.
Grafana Deployment
The kube-prometheus-stack was deployed through a Helm chart. For more details about the Helm chart and the available values, take a look at the official Helm chart.
$ helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
$ helm upgrade --install prometheus prometheus/kube-prometheus-stack --version 88.6.0 --namespace monitoring --create-namespace -f vcluster-monitoring.yaml
The values provided to the Helm chart need to match your own Keycloak instance. Below are some of the most important values required to make this deployment successful.
grafana:
grafana.ini:
server:
root_url: "https://<Your Grafana FQDN>"
auth.generic_oauth:
enabled: true
name: Keycloak
allow_sign_up: true
scopes: openid email profile
auth_url: https://<Keycloak FQDN>/realms/<Your Realm Name>/protocol/openid-connect/auth
token_url: https://<Keycloak FQDN>/realms/<Your Realm Name>/protocol/openid-connect/token
api_url: https://<Keycloak FQDN>/realms/<Your Realm Name>/protocol/openid-connect/userinfo
Detailed information about Grafana and Keycloak OAuth2; take a look here.
Recap Cilium Configuration
Since Cilium v1.19.4 is already installed in the Control Plane and the Gateway API integration is in place, we can continue with the IPAM pool definition for the vcluster-team-d cluster alongside the Gateway and HTTPRoute resources.
apiVersion: cilium.io/v2
kind: CiliumLoadBalancerIPPool
name: rke2-pool-vcluster-team-d
spec:
blocks:
- start: 10.10.20.20
stop: 10.10.20.30
serviceSelector:
matchLabels:
io.kubernetes.service.namespace: vcluster-team-d
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
name: monitoring-gw
namespace: monitoring
spec:
gatewayClassName: cilium
listeners:
- name: http
protocol: HTTP
port: 80
hostname: "grafana-vcluster.<Your Domain>"
allowedRoutes:
namespaces:
from: Same
- name: https
protocol: HTTPS
port: 443
hostname: "grafana-vcluster.<Your Domain>"
tls:
mode: Terminate
certificateRefs:
- kind: Secret
name: grafana-vcluster-tls
allowedRoutes:
namespaces:
from: Same
---
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
name: grafana
namespace: monitoring
spec:
parentRefs:
- name: monitoring-gw
sectionName: https
hostnames:
- "grafana-vcluster.<Your Domain>"
rules:
- matches:
- path:
type: PathPrefix
value: /
backendRefs:
- name: prometheus-grafana
port: 80
There are many ways to create TLS certificates for Grafana: either use OpenSSL, or the mkcert utility or use cert-manager and Gateway API to issue valid TLS certificates and handle their lifecycle automatically. An example of how the second works, take a look at the Cilium with Gateway API and Let's Encrypt blog post.
$ export KUBECONFIG=vcluster-team-d.yaml
$ kubectl apply -f monitoring-gateway.yaml,monitoring-httproute.yaml
Validation vcluster-team-d
$ export KUBECONFIG=vcluster-team-d.yaml
$ kubectl get gateway,httproute -n monitoring
NAME CLASS ADDRESS PROGRAMMED AGE
gateway.gateway.networking.k8s.io/monitoring-gw cilium 10.10.20.25 True 23h
NAME HOSTNAMES AGE
httproute.gateway.networking.k8s.io/grafana ["grafana-vcluster.YOUR DOMAIN"] 23h
Validation Control Plane cluster
$ export KUBECONFIG=control-plane-cluster.yaml
$ kubectl get gateway,httproute -n vcluster-team-d
NAMESPACE NAME CLASS ADDRESS PROGRAMMED AGE
vcluster-team-d gateway.gateway.networking.k8s.io/v5kg04i89gz2vp cilium 10.10.20.25 True 23h
NAMESPACE NAME HOSTNAMES AGE
vcluster-team-d httproute.gateway.networking.k8s.io/v1sw8vlevjjolh ["grafana-vcluster.YOUR DOMAIN"] 23h
vCluster Helm Chart Updates
In the previous part of the series, we provided an easy way to patch the resources from the tenant to the Control plane cluster. This is enough for the basic NGINX deployment in the default namespace, but not enough when we involve more complex deployments, hostname resolution with TLS encryption, etc. To make this example a working one, we will have to perform small updates to the vCluster Helm chart values, especially the sync part.
sync:
customResources:
gateways.gateway.networking.k8s.io:
enabled: true
patches:
- path: spec.listeners[*].tls.certificateRefs[*] # Rewrite TLS certificateRefs secret name to the synced name on the host
reference:
apiVersion: v1
kind: Secret
namePath: name
namespacePath: namespace
Update vCluster Helm Deployment
$ export KUBECONFIG=control-plane-cluster.yaml
$ helm upgrade --install vcluster-team-d vcluster \
--repo https://charts.loft.sh \
--namespace vcluster-team-d \
--create-namespace \
-f vcluster_team_d_syncer.yaml
Once the vCluster underlying configuration is updated, we will see the routing work as it should, and we will be able to reach the Grafana dashboard using the hostname provided in the configuration mentioned above.
Ensure your DNS is able to resolve the FQDN defined for the Grafana dashboard. If not, the easiest way to test the setup is by adding an entry to the /etc/hosts file on your Linux machine.
Validation
status:
addresses:
- type: IPAddress
value: 10.10.20.25
conditions:
- lastTransitionTime: "2026-08-25T07:06:41Z"
message: Gateway successfully scheduled
observedGeneration: 1
reason: Accepted
status: "True"
type: Accepted
- lastTransitionTime: "2026-08-25T07:06:41Z"
message: Gateway Programmed
observedGeneration: 1
reason: Programmed
status: "True"
type: Programmed
listeners:
- attachedRoutes: 0
conditions:
- lastTransitionTime: "2026-08-25T07:06:41Z"
message: Resolved Refs
observedGeneration: 1
reason: ResolvedRefs
status: "True"
type: ResolvedRefs
- lastTransitionTime: "2026-08-25T07:06:41Z"
message: Listener Accepted
observedGeneration: 1
reason: Accepted
status: "True"
type: Accepted
- lastTransitionTime: "2026-08-25T07:06:41Z"
message: Listener Programmed
observedGeneration: 1
reason: Programmed
status: "True"
type: Programmed
name: http
supportedKinds:
- group: gateway.networking.k8s.io
kind: HTTPRoute
- group: gateway.networking.k8s.io
kind: GRPCRoute
- attachedRoutes: 1
conditions:
- lastTransitionTime: "2026-08-25T07:06:41Z"
message: Resolved Refs
observedGeneration: 1
reason: ResolvedRefs
status: "True"
type: ResolvedRefs
- lastTransitionTime: "2026-08-25T07:06:41Z"
message: Listener Accepted
observedGe

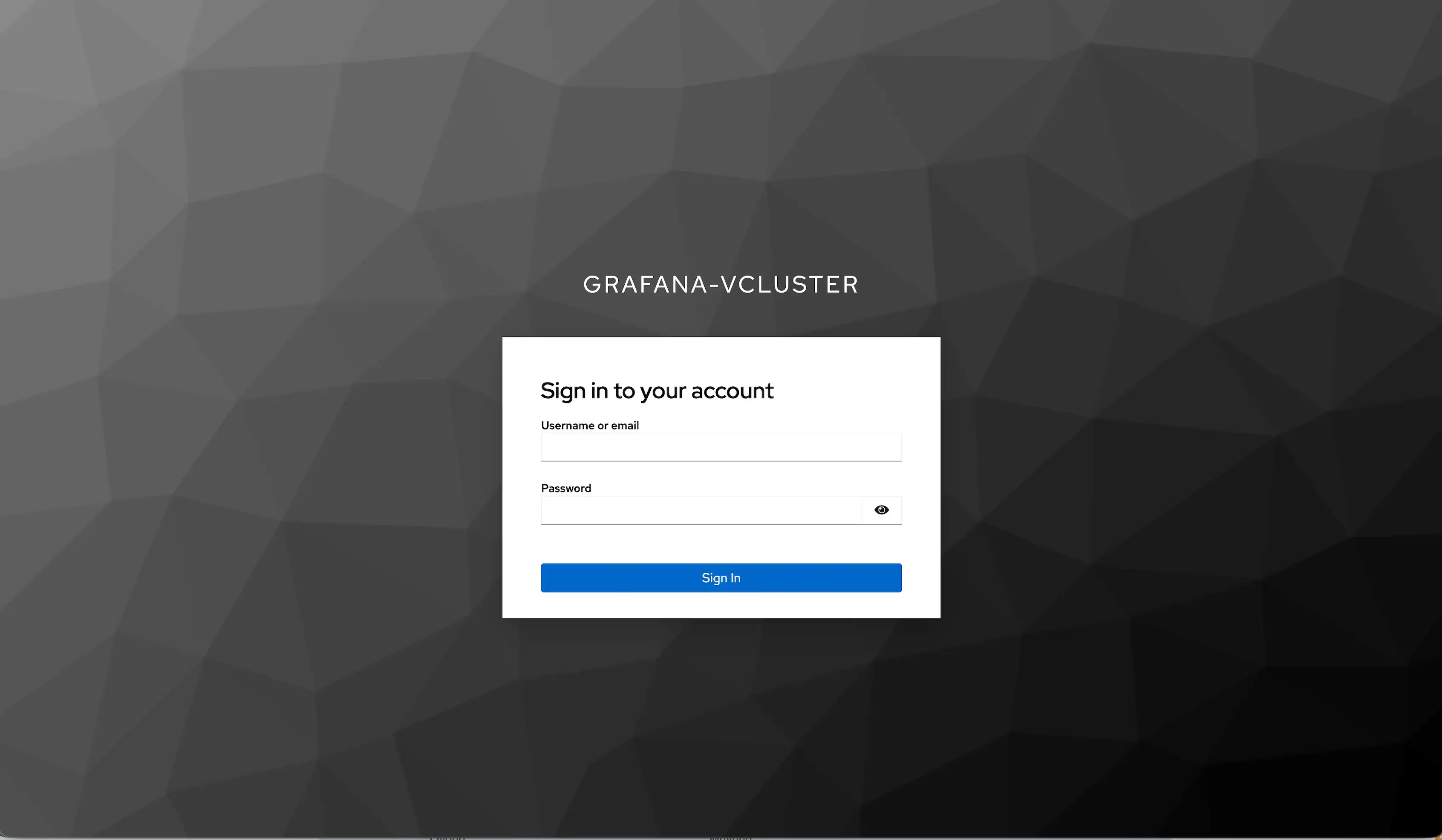

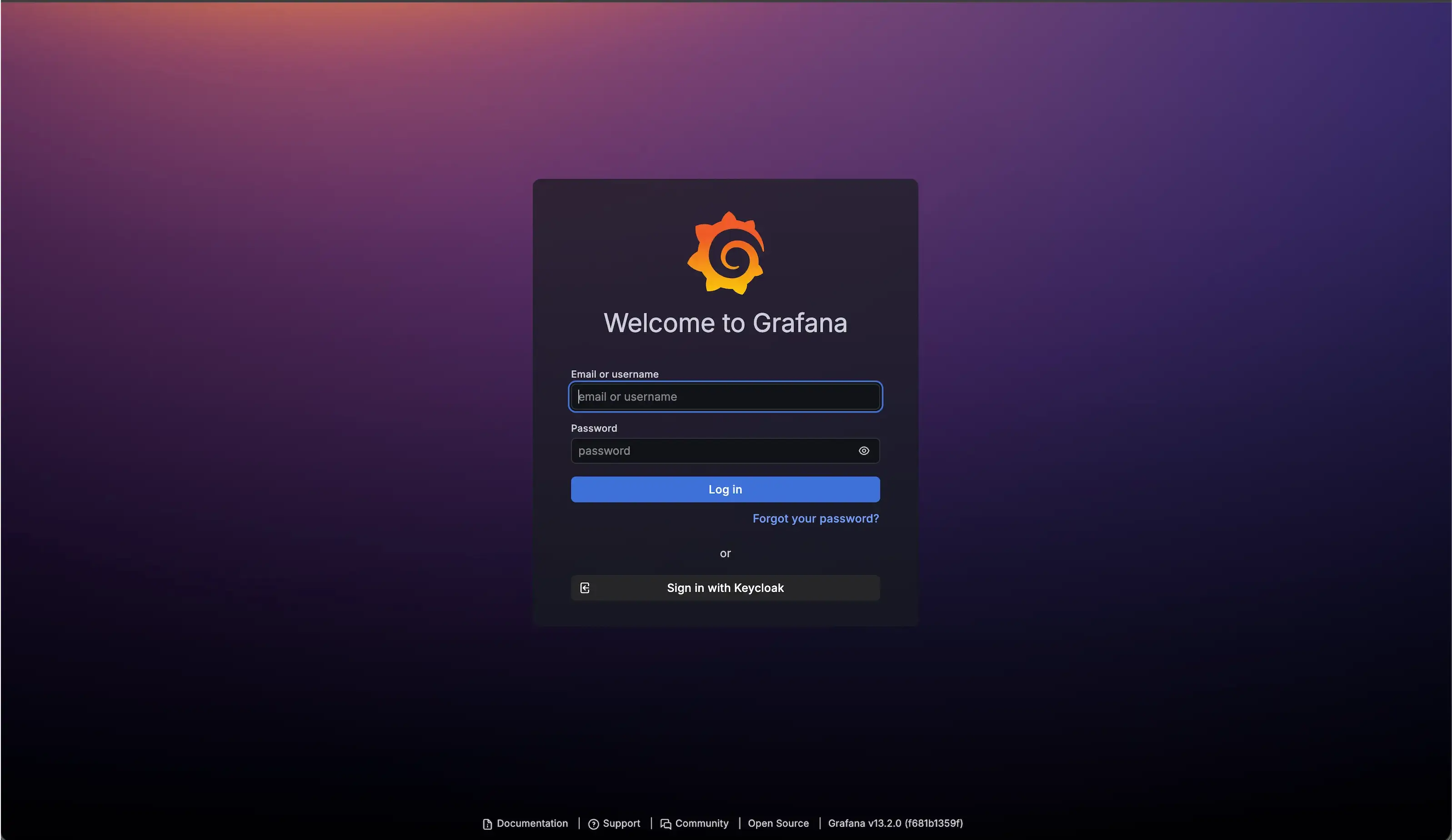

Once the setup is complete, we should be able to access the Grafana dashboard via the defined FQDN and authenticate using Keycloak.
Since in part 3 of the series we introduced the Cilium network policies and how they are applied to a tenant environment. It might be worth double-checking the rules defined. There might be a need to allow traffic to and from the Keycloak instance.
Common Grafana OAuth Issues
While working out the setup, the most commonly faced issues were due to a misconfiguration of the Keycloak Realm or due to the Gateway not performing the routing correctly. We will go through these scenarios and provide troubleshooting commands alongside practical solutions.
vCluster Secret Sharing
Going through the official vCluster documentation around secret sharing, it is mentioned that this capability is enabled by default. What does that mean? The grafana-vcluster-tls secret defined in the tenant cluster should be accessible from the Control Plane node. And this is true. However, the patches mentioned above are required for that to work. This is because the system looks for a secret name in a different namespace and with a different name.
View from Control Plane Node - No full secret sharing
- attachedRoutes: 0
conditions:
- lastTransitionTime: "2026-09-03T09:01:50Z"
message: Invalid CertificateRef
reason: InvalidCertificateRef
status: "False"
type: ResolvedRefs
- lastTransitionTime: "2026-09-03T09:01:50Z"
message: Listener not valid. Invalid CertificateRef, Secret "grafana-vcluster-tls"
not found
observedGeneration: 1
reason: Invalid
status: "False"
type: Accepted
To solve this issue, we need to instruct the tenant to share all secrets with the Control Plane node. Update the Helm chart values and include the following. Then, upgrade the Helm chart.
sync:
toHost:
secrets:
enabled: true
all: true
View from Control Plane Node - No patches
$ kubectl get secret -n vcluster-team-d | grep -i "grafana-vcluster-tls"
grafana-vcluster-tls-x-monitoring-x-vcluster-team-d kubernetes.io/tls 2 2m31s
- attachedRoutes: 0
conditions:
- lastTransitionTime: "2026-09-03T09:08:03Z"
message: Invalid CertificateRef
reason: InvalidCertificateRef
status: "False"
type: ResolvedRefs
- lastTransitionTime: "2026-09-03T09:08:03Z"
message: Listener not valid. Invalid CertificateRef, Secret "grafana-vcluster-tls"
not found
observedGeneration: 1
reason: Invalid
status: "False"
type: Accepted
From the outputs above, it is obvious that the secret is visible on the Control Plane node; however, not correctly translated for the Gateway to route traffic correctly. Update the vCluster Helm charts and include the required patches for the Gateway resources as described here.
View from Control Plane Node - With patches
$ kubectl get secret -n vcluster-team-d | grep -i "grafana-vcluster-tls"
grafana-vcluster-tls-x-monitoring-x-vcluster-team-d kubernetes.io/tls 2 1d
Grafana OAuth Troubleshooting
There could be issues with the Grafana dashboard authenticating using Keycloak. This could be caused by many issues. My recommendation is to start by checking the issue from the browser and using the Inspect and Network tabs to grab the requests and the responses between the two systems. This will give you a good understanding of what has been exchanged between the Grafana dashboard and Keycloak.
From a Kubernetes point of view, I will start troubleshooting by checking the Grafana configuration. Ensure the settings there match the recommendations from the official Grafana documentation.
$ kubectl exec -n monitoring prometheus-grafana-7db659879-28bdr -c grafana -- grep -A20 'auth.generic_oauth' /etc/grafana/grafana.ini
If the configuration is correct, debug the prometheus-grafana-7db659879-28bdr pod using the nicolaka/netshoot image on a baseline profile.
$ kubectl debug -it prometheus-grafana-5fcf75c5fc-mxr8v -n monitoring --image=nicolaka/netshoot --target=grafana --profile=baseline
$ curl -kiv https://keycloak.test.lab/realms/grafana-vcluster/.well-known/openid-configuration
Conclusion
In the final part of the vCluster series, we explored how to extend Cilium with Gateway API setup on a tenant environment to cover complexer deployments. If you are already a Gateway API adopter, check out the latest Cilium and Gateway API news. This is the end of the series around vCluster.
Resources
✉️ Contact
If you have any questions, feel free to get in touch! You can use the Discussions option found here or reach out to me on any of the social media platforms provided. 😊 We look forward to hearing from you!
Series Navigation
| Part | Title |
|---|---|
| Part 1 | vCluster Recent Updates |
| Part 2 | Introduction to Cilium L2 Announcements and vCluster Platform |
| Part 3 | vCluster Networking and Cilium Under the Hood |
| Part 4 | vCluster and Cilium Multi-Pool Mode |
| Part 5 | vCluster and Cilium Gateway API Shared Resources |
| Part 6 | vCluster and Cilium Gateway API Shared Resources - Keycloak and Grafana Example |
