Talos, Proxmox, OpenTofu: Beginner's Guide Pt.5
Summary:
We continue where we left off in part 4. We add Longhorn persistence block storage to the Talos Linux cluster
Introduction
To allow users to work and use persistent storage, I decided to integrate Longhorn into the setup as it is easy to use, lightweight and reliable. Longhorn significantly enhances Talos Linux Kubernetes clusters by providing robust, highly available persistent block storage, which is crucial for running stateful applications. Longhorn is an open-source project and includes built-in features for incremental snapshots and backups to secondary storage like S3 or NFS, along with disaster recovery capabilities, all managed through an intuitive GUI.
For this part, we will enable Longhorn on the module and then deploy it using Helm commands. In a future post, the module will be updated to include the storage as a deployment option.
Lab Setup
+------------------------------+------------+
| Deployment | Version |
+------------------------------+------------+
| Proxmox VE | 8.2.4 |
| Talos Kubernetes Cluster | 1.11.3 |
| Cilium | 1.18.0 |
| Longhorn | 1.10.1 |
+------------------------------+------------+
+-----------------------------+-----------+
| OpenTofu Providers | Version |
+-----------------------------+-----------+
| opentofu/random | 3.6.2 |
| telmate/proxmox | 3.0.2-rc4 |
| siderolabs/talos | 0.8.1 |
+-----------------------------+-----------+
+------------------------+-------------------------+
| Binaries | Version |
+------------------------+-------------------------+
| tofu | OpenTofu v1.8.1/v1.9.0 |
| kubectl | v1.34.1 |
+------------------------+-------------------------+
Module Tests
The module underwent testing mainly on a local MacBook; it also underwent testing on an Ubuntu 24.04 virtual machine within the Proxmox environment.
GitHub Resources
Check out the GitHub repository for the full code.
Prerequisites
As today's blog focuses on the changes performed due to the OpenTofu provider updates, it is advised to have a look at part 4 of the series. Any prerequisites should already have been satisfied.
Talos Linux ISO Requirements
The default Talos root filesystem does not include the longhorn binary executables. That means we need to visit the Talos image factory and include the extensions below.
QEMU Guest Agent: Allow reporting of the virtual machine status to Proxmoxsiderolabs/iscsi-tools: Enable the iscsid daemon and iscsiadm on all the nodes of the Kubernetes cluster for persistent volume operationssiderolabs/util-linux-tools: Enable the Linux util tools on all the nodes of the Kubernetes cluster
As we did in the past, mark down the First Boot .iso link and the Initial Installation link. The details will be used in the module as demonstrated previously.
Data Path Mount and UserVolumeConfig
We need to provide additional data path mounts to be accessible to the Kubelet. Longhorn’s default data path is /var/lib/longhorn. To use the configuration in Talos, we need to change the default data path to /var/mnt/longhorn. For this setup, I included the extra mounts for the Kubelet in the init_install_worker.tfmpl file.
machine:
install:
image: ${initial_image}
kubelet:
extraMounts:
- destination: /var/mnt/longhorn
type: bind
source: /var/mnt/longhorn
options:
- bind
- rshared
- rw
Additionally, we need to create a UserVolumeConfig to mount the disk for Longhorn, which will be mounted to the /var/mnt/longhorn directory on the configured nodes. The configuration below was also included in the init_install_worker.tfmpl file.
---
apiVersion: v1alpha1
kind: UserVolumeConfig
name: longhorn
provisioning:
diskSelector:
match: disk.dev_path == '/dev/sdb'
grow: false
maxSize: 10GB
At line 7, /dev/sdb is the location of the second disk to be used by Longhorn.
Prior to v1.10, Talos versions, the .machine.disks option was supported. However, the recommended approach for later versions is the use of UserVolumeConfig. To get a better understanding of what the supported fields of the resource above are, take a look at the Talos API Configuration.
Tofu Execution Plan
$ tofu init
$ tofu plan
$ tofu apply
talosctl Validation
Once the cluster(s) are successfully created, we will use the talosctl utility to check the disks and whether the correct mounts have been created on the nodes. Get a copy of the talosctl utility here.
Collect talos_config Output
$ tofu output talos_configuration
Collect the output between the EOT fields and store it in a file with a name of your preference. For this setup, the filename talos_config.yaml is used.
$ export TALOSCONFIG=~/talos_config.yaml
Once the TALOSCONFIG is exported, we will be able to interact with our cluster(s).
Check Disk and Volumes
$ talosctl get disks --nodes <Node IP Address>
$ talosctl mounts --nodes <Node IP Address> | grep -i "/var/mnt/longhorn"
NODE FILESYSTEM SIZE(GB) USED(GB) AVAILABLE(GB) PERCENT USED MOUNTED ON
<Node IP Address> /dev/sdb1 9.93 0.22 9.71 2.26% /var/mnt/longhorn
Install Longhorn - Helm Chart
The easiest way to install Longhorn is by using the available Helm chart. Ensure the KUBECONFIG variable is already exported, and you can interact with the underlying cluster.
values.yaml
Create a values.yaml file and define the data path location on the nodes along with other information.
defaultSettings:
defaultReplicaCount: "2"
defaultDataPath: "/var/mnt/longhorn"
defaultLonghornStaticStorageClass: longhorn
longhorn-system namespace
To allow Longhorn to use the underlying disk of the Kubernetes nodes, we need to ensure the longhorn-system namespace has the right permissions. For that reason, the labels will be included.
---
apiVersion: v1
kind: Namespace
metadata:
name: longhorn-system
labels:
pod-security.kubernetes.io/enforce: privileged
pod-security.kubernetes.io/audit: privileged
pod-security.kubernetes.io/warn: privileged
Helm Chart
$ helm repo add longhorn https://charts.longhorn.io
$ helm install longhorn longhorn/longhorn --namespace longhorn-system --values values.yaml
Validation
$ kubectl get pods -n longhorn-system
NAME READY STATUS RESTARTS AGE
csi-attacher-5988f5ff9c-czvrx 1/1 Running 0 5h13m
csi-attacher-5988f5ff9c-fmf2d 1/1 Running 0 5h13m
csi-attacher-5988f5ff9c-rzt76 1/1 Running 3 (5h11m ago) 5h13m
csi-provisioner-588d86c74-64pnq 1/1 Running 2 (5h12m ago) 5h13m
csi-provisioner-588d86c74-jsnr8 1/1 Running 0 5h13m
csi-provisioner-588d86c74-mtdb2 1/1 Running 0 5h13m
csi-resizer-76cbbd958d-2qdt8 1/1 Running 2 (5h11m ago) 5h13m
csi-resizer-76cbbd958d-lvk9f 1/1 Running 0 5h13m
csi-resizer-76cbbd958d-tlpbv 1/1 Running 0 5h13m
csi-snapshotter-85d6c5cb94-bj9qm 1/1 Running 2 (5h12m ago) 5h13m
csi-snapshotter-85d6c5cb94-pqlx6 1/1 Running 0 5h13m
csi-snapshotter-85d6c5cb94-whzrr 1/1 Running 0 5h13m
engine-image-ei-26bab25d-4tkzm 1/1 Running 0 5h14m
engine-image-ei-26bab25d-7pr4h 1/1 Running 0 5h14m
engine-image-ei-26bab25d-ktv2l 1/1 Running 0 5h14m
instance-manager-5d3352c3e398ede1baf05ebf20405f10 1/1 Running 0 5h13m
instance-manager-acb5b0d872eea7e659592291c09f3d70 1/1 Running 0 5h14m
instance-manager-b4f38d1a39c9a62925745ef27694e1a2 1/1 Running 0 5h14m
longhorn-csi-plugin-f8tq5 3/3 Running 0 5h13m
longhorn-csi-plugin-vjp2v 3/3 Running 1 (5h13m ago) 5h13m
longhorn-csi-plugin-wtffg 3/3 Running 0 5h13m
longhorn-driver-deployer-74f45ccf86-ntbjj 1/1 Running 0 5h15m
longhorn-manager-m7k9n 2/2 Running 0 5h15m
longhorn-manager-nf4c4 2/2 Running 1 (5h14m ago) 5h15m
longhorn-manager-xfgsb 2/2 Running 0 5h15m
longhorn-ui-7b8657c6cd-fz54x 1/1 Running 0 5h15m
longhorn-ui-7b8657c6cd-lx5z6 1/1 Running 0 5h15m
$ kubectl get storageclass
NAME PROVISIONER RECLAIMPOLICY VOLUMEBINDINGMODE ALLOWVOLUMEEXPANSION AGE
longhorn (default) driver.longhorn.io Delete Immediate true 8m17s

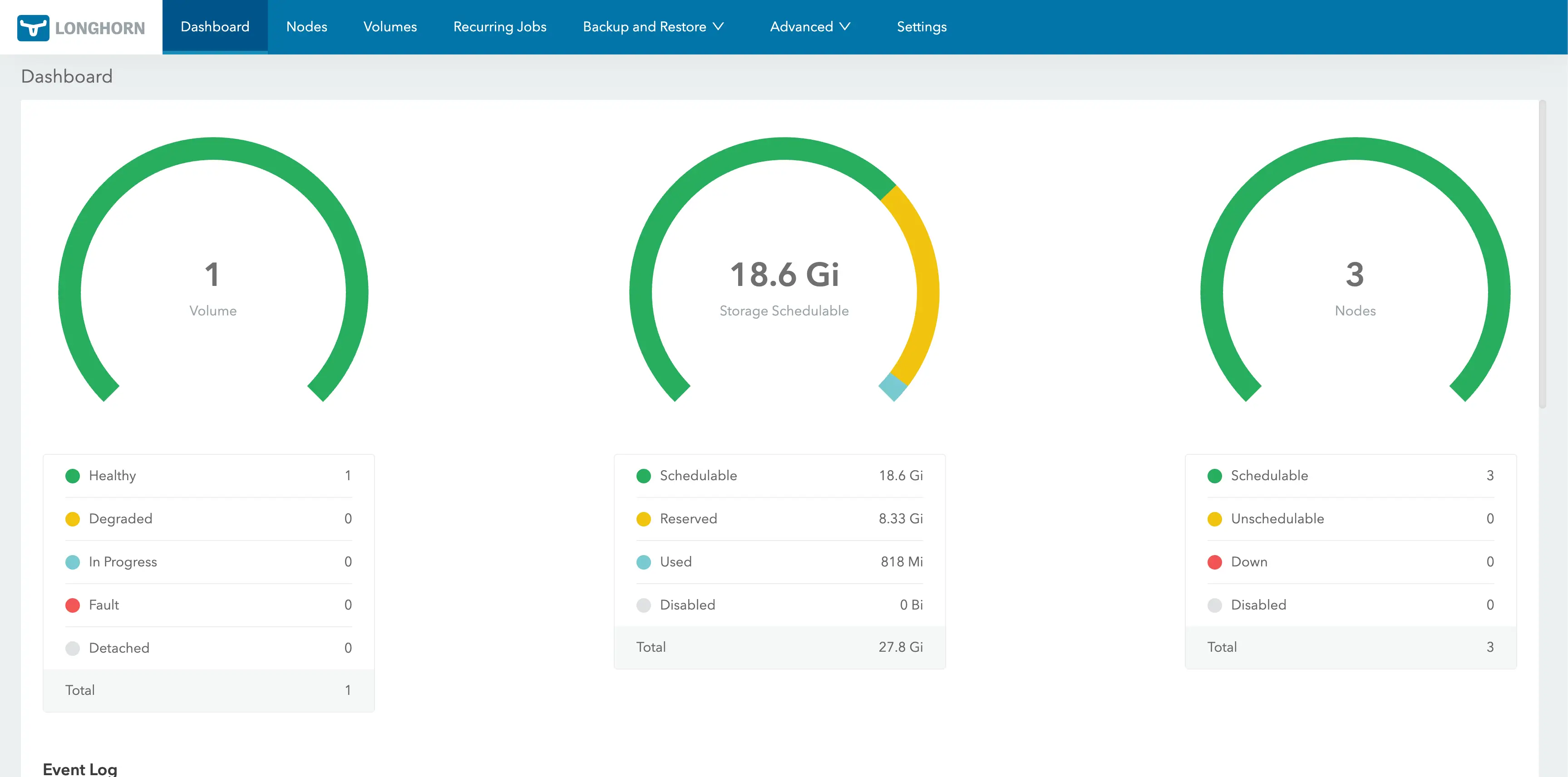

Use port-forward or update the Longhorn service to access the portal via a NodePort or a LoadBalancer IP address.
$ kubectl -n longhorn-system port-forward svc/longhorn-frontend 8080:80
Access the link below: https://localhost:8080
Deploy an Nginx Application
To test the setup, we will create a simple Nginx application. Apply the below manifest to the Talos Linux Kubernetes cluster.
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: nginx-longhorn-pvc
spec:
accessModes:
- ReadWriteOnce
storageClassName: longhorn
resources:
requests:
storage: 1Gi
---
apiVersion: v1
kind: Pod
metadata:
name: nginx-longhorn
labels:
app: nginx-longhorn
spec:
containers:
- name: nginx
image: nginx:stable
ports:
- containerPort: 80
volumeMounts:
- name: nginx-storage
mountPath: /usr/share/nginx/html
volumes:
- name: nginx-storage
persistentVolumeClaim:
claimName: nginx-longhorn-pvc
---
apiVersion: v1
kind: Service
metadata:
name: nginx-longhorn
spec:
selector:
app: nginx-longhorn
ports:
- protocol: TCP
port: 80
targetPort: 80
type: ClusterIP

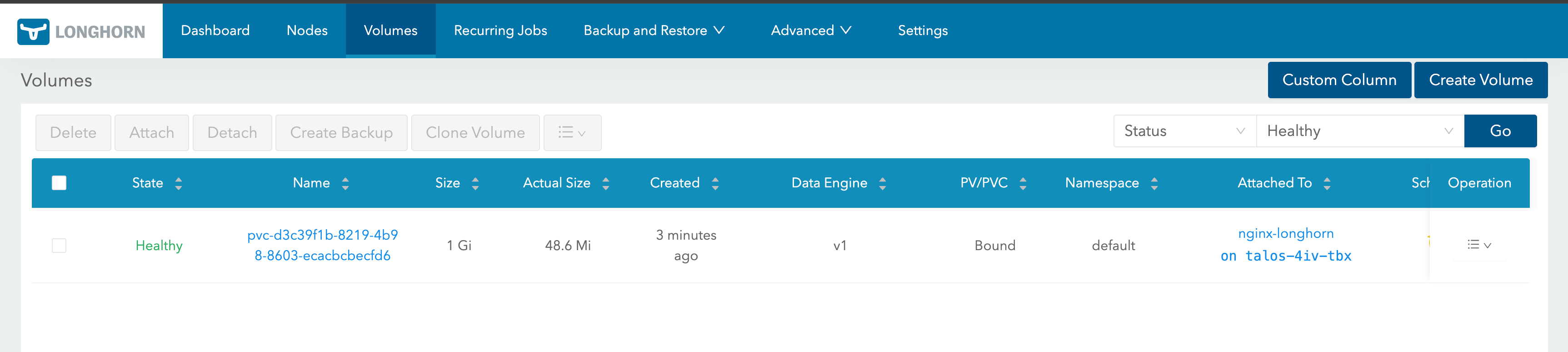

Validation
$ kubectl apply -f nginx_app.yaml
$ kubectl get pods,svc,pv,pvc
NAME READY STATUS RESTARTS AGE
pod/nginx-longhorn 1/1 Running 0 27s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 40m
service/nginx-longhorn ClusterIP 10.106.213.223 <none> 80/TCP 27s
NAME CAPACITY ACCESS MODES RECLAIM POLICY STATUS CLAIM STORAGECLASS VOLUMEATTRIBUTESCLASS REASON AGE
persistentvolume/pvc-d3c39f1b-8219-4b98-8603-ecacbcbecfd6 1Gi RWO Delete Bound default/nginx-longhorn-pvc longhorn <unset> 25s
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS VOLUMEATTRIBUTESCLASS AGE
persistentvolumeclaim/nginx-longhorn-pvc Bound pvc-d3c39f1b-8219-4b98-8603-ecacbcbecfd6 1Gi RWO longhorn <unset> 27s
Future Steps
Demonstrate how Ceph storage using Rook looks in the existing setup. This might come in the future, as this is not required for my homelab setup!
Conclusion
🚀 For storage requirements, the easiest way is to integrate Longhorn storage into the setup!
