Migrate ArgoCD to Cilium Ingress

· 6 min read
Eleni Grosdouli
Eleni Grosdouli
DevOps Consulting Engineer at Cisco Solutions GmbH

Summary:

An easy way to migrate ArgoCD running on an RKE2 cluster from Ingress NGINX to Cilium Ingress.

Scenario​

If you are a Platform, DevOps, or seasonal engineer using Kubernetes, you have likely heard about the Ingress NGINX retirement. The project will be archived at the beginning of 2026, and no active maintenance, security patches or bug fixes will be provided. For more information, read the relevant announcement. Now, there is no need to panic. For a quick migration, we will use the Cilium Ingress. But feel free to explore other alternatives like HAProxy Ingress or Traefik.

Cilium Ingress supports standard Kubernetes ingress resources. So, it can be used for path-based routing and for TLS termination. That means, we will keep the existing Ingress manifest and update only the required fields specific to Cilium. For the demonstration, I already have an RKE2 cluster up and running. I will show you the required parameters to deploy Cilium and enable its Ingress functionality. If you are as excited as I am, let's dive into the Cilium magic! ✨🪄

Lab Setup​

+-----------------+----------------------+------------------------+
|  Cluster Name   |         Type         |        Version         |
+-----------------+----------------------+------------------------+
|    RKE2         |  Management Cluster  | RKE2 v1.34.1+rke2r1    |
+-----------------+----------------------+------------------------+

+-------------+----------+
|  Deployment | Version  |
+-------------+----------+
|    ArgoCD   |  v3.2.0  |
|    Cilium   |  v1.18.1 |
+-------------+----------+

RKE2 Parameters​

Here are the parameters needed to install an RKE2 cluster, deploy Cilium as the Container Network Interface (CNI), and enable Cilium Ingress. As I am not running BGP locally, I utilise the l2announcements alongside the Ciliums IP Address Management(IPAM) capabilities. To explore the l2announcements with the IPAM setup, take a look at a previous post.

Server Configuration​

cat << 'EOF' > /etc/rancher/rke2/config.yaml
write-kubeconfig-mode: 0644
tls-san:
  - <your cluster name>
token: rke2
cni: cilium
cluster-cidr: "10.42.0.0/16"
service-cidr: "10.43.0.0/16"
node-ip: "the node IP of the master node"
disable: rke2-ingress-nginx # You can disable the RKE2 Ingress NGINX from the setup (optional)
disable-kube-proxy: true
EOF

Cilium Helm Chart Configuration​

Specific to the Cilium Ingress setup, have a look at the Cilium official documentation. Effectively, kubeProxyReplacement=true or nodePort.enabled=true needs to be set. Then, we can activate Ingress-specific details.

cat << 'EOF' > /var/lib/rancher/rke2/server/manifests/rke2-cilium-config.yaml
apiVersion: helm.cattle.io/v1
kind: HelmChartConfig
metadata:
  name: rke2-cilium
  namespace: kube-system
spec:
  valuesContent: |-
    image:
      tag: v1.18.1
    kubeProxyReplacement: true
    k8sServiceHost: 127.0.0.1
    k8sServicePort: 6443
    operator:
      replicas: 1
    ingressController:
       enabled: true
       loadbalancerMode: dedicated
    hubble:
      enabled: true
      relay:
        enabled: true
      ui:
        enabled: true
EOF

Check out the Cilium Helm chart values for more information.

Existing RKE2 Cluster with Cilium​

For an existing RKE2 cluster powered with Cilium, we only need to perform a Helm chart upgrade.

kubeProxyReplacement: true
ingressController:
    enabled: true
    loadbalancerMode: dedicated
$ helm upgrade rke2-cilium rke2-charts/rke2-cilium --version 1.18.103 --namespace kube-system -f values.yaml

Validation​

$ kubectl get ingressclass | grep cilium
cilium   cilium.io/ingress-controller   <none>       135m

ArgoCD with Ingress NGINX Configuration​

Below is the old ArgoCD configuration using the Ingress NGINX controller.

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: argocd-server-ingress
  namespace: argocd
  annotations:
    nginx.ingress.kubernetes.io/force-ssl-redirect: "true"
    nginx.ingress.kubernetes.io/ssl-passthrough: "true"
spec:
  ingressClassName: nginx
  rules:
  - host: argocd-nginx.test.lab
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: argocd-server
            port:
              name: http
  tls:
  - hosts:
    - argocd-nginx.test.lab
    secretName: argocd-server-tls # as expected by argocd-server

ArgoCD with Cilium Ingress Configuration​

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: argocd-cilium-ingress
  namespace: argocd
  annotations:
    ingress.cilium.io/tls-passthrough: enabled
    ingress.cilium.io/loadbalancer-class: io.cilium/l2-announcer
spec:
  ingressClassName: cilium
  rules:
    - host: argocd.test.lab
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: argocd-server
                port:
                  name: http
  tls:
    - hosts:
        - argocd.test.lab
      secretName: argocd-server-cilium-tls
note

The ingress.cilium.io/loadbalancer-class: io.cilium/l2-announcer annotation can be used because the loadbalancerMode: dedicated was defined, and allows us to choose a specific loadbalancer class for the ingress.

If we compare the old with the new configuration, the changes are minimal. We define the Cilium TLS passthrough annotation alongside the ingressClassName to Cilium. Once the new configuration has been applied, check the Ingress resource.

$ kubectl get svc -n kube-system | grep cilium
cilium-ingress                            LoadBalancer   10.43.213.160   10.10.20.10   80:31172/TCP,443:31657/TCP   48m

$ kubectl apply -f cilium_ingress.yaml

$ kubectl get ingress -n argocd
NAME                    CLASS    HOSTS                   ADDRESS        PORTS     AGE
argocd-ingress-nginx    nginx    argocd-nginx.test.lab   10.10.20.114   80, 443   8m35s
argocd-cilium-ingress   cilium   argocd.test.lab         10.10.20.11    80, 443   5s

The easiest way to simultaneously test the new setup is by creating a temporary subdomain for the Cilium Ingress. Once testing is complete, migrate to the Cilium ingress controller.

tip

As we defined the loadbalancerMode: dedicated, the Ingress controller creates a dedicated LoadBalancer sevice. Looking at the ingress with name argocd-cilium-ingress, the ADDRESS field comes from the CiliumLoadBalancerIPPool resource. The IPv4 pool was created in the cluster.

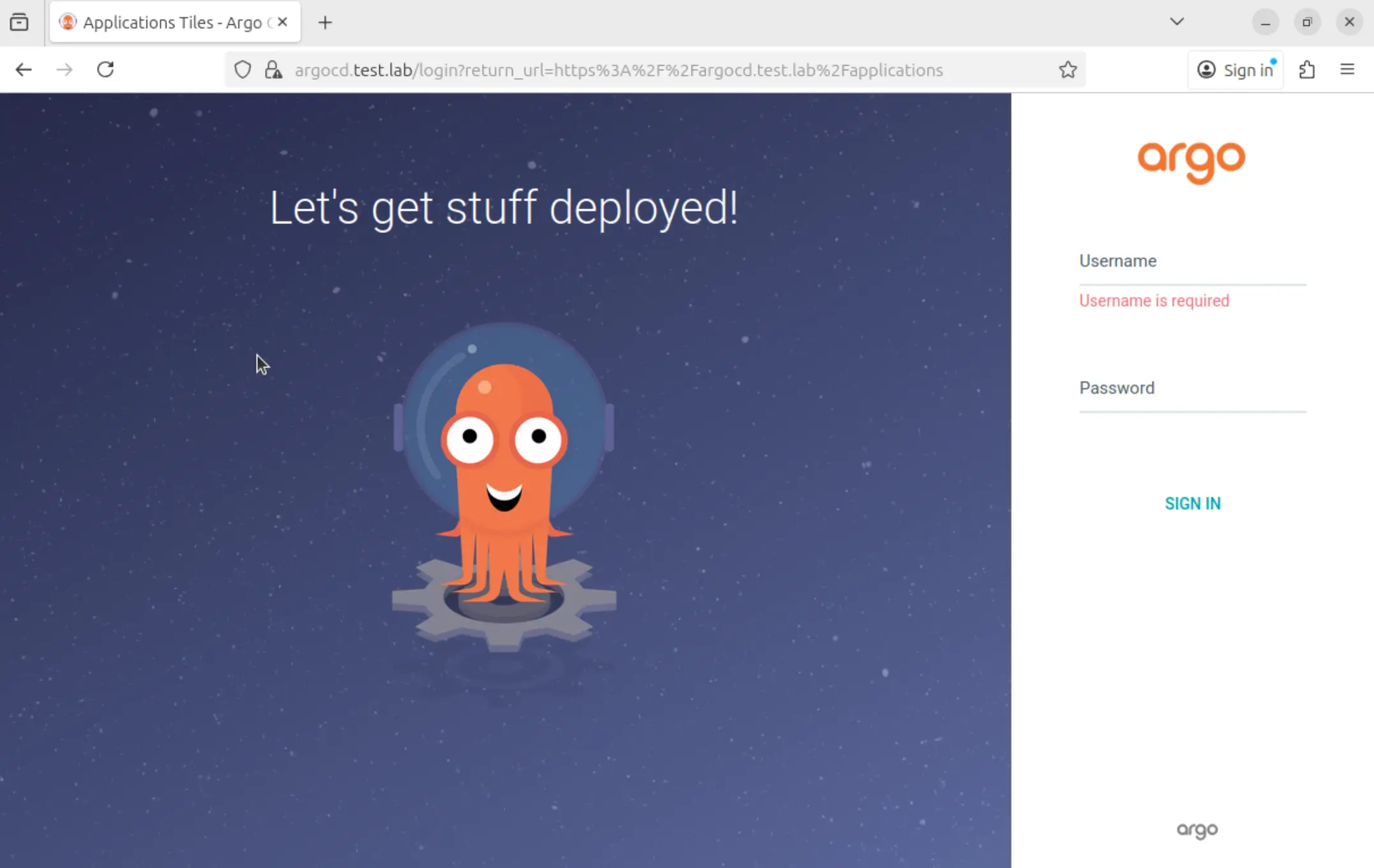

Access ArgoCD UI​

As long as the DNS is working as expected, we will be able to resolve the FQDN defined in the Ingress configuration.

To test locally on Linux and macOS, update the '/etc/hosts' file. Add the IP address of a Kubernetes worker node, then the FQDN. For Windows-based systems, you can modify the 'C:\Windows\System32\Drivers\etc\hosts' file.

URL: https://argocd.test.lab

title image reading &quot;ArgoCD UI with Cilium Ingress&quot;

Further Reading​

A great article by Dean Lewis describes alternatives and easy-to-follow steps to move from Ingress NGINX to Cilium. If you want to explore how Cilium integrates with Gateway API and cert-manager, take a look at the Cilium Complementary Features blog.

Resources​

Conclusion​

With a few tweaks, migrate the ArgoCD deployment to the Cilium ingress controller!
