Explore Multitenancy with vCluster using GitOps - Updates
Introduction
In a previous post, we described how to install multiple virtual clusters in a Civo cloud environment with vCluster.
Today's post is an update of the older deployment interacting with virtual clusters via a registered domain hosted in Cloudflare and using a LoadBalancer service to achieve that. Let's dive into it.
Environment Setup
+----------------------+------------+-------------------------------------+
| Cluster Name | Version | Comments |
+----------------------+------------+-------------------------------------+
| cluster01-test |v1.30.5+k3s1| Civo 3 Node - Medium Standard |
| vcluster-dev |v1.31.1+k3s1| Defined in the `dev` namespace |
+----------------------+------------+-------------------------------------+
Scenario
The requirement was to create a fast and easy multitenant setup for an upcoming project. However, I came to realise that many things have evolved since the time I wrote the vCluster post. The Loft team performed many changes on how we specify additional vCluster values for a Helm chart deployment. After going through the documentation, I believe more structure and clarity are provided with the latest release. The post is an attempt to show readers how to create virtual clusters using the GitOps approach while utilising a domain for outside reachability.
Prerequisites
- Helm version ≥ v3.10.0
- kubectl installed/available. Find the guide here.
Step 1: Prepare Custom values.yaml file
To allow the virtual cluster to be accessible from the outside, we need a LoadBalancer service for reachability. The External-IP address assigned will be used during the Helm chart installation and when defining an A record in Cloudflare.
---
apiVersion: v1
kind: Service
metadata:
name: vcluster-loadbalancer
namespace: dev
spec:
selector:
app: vcluster
release: vcluster-dev
ports:
- name: https
port: 443
targetPort: 8443
protocol: TCP
type: LoadBalancer
Apply Service Manifest
$ export KUBECONFIG=/the/path/to/parent/kubeconfig
$ kubectl create ns dev # vCluster resources will be created in the `dev` namespace
$ kubectl apply -f vcluster-lb.yaml
$ kubectl get svc -n dev
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
vcluster-loadbalancer LoadBalancer 10.43.23.1 x.x.x.x 443:31633/TCP 48s
Step 2: Create vCluster.yaml Manifest
From my experience, this is the part that changed the most. The Helm Chart values for vCluster are located here. A noted difference is that now we have only one values.yaml file for any supported virtual deployment (k8s, k3s, k0s). Also, global variables are defined outside of the virtual cluster configuration which in my opinion makes things clearer.
To come up with the updated vcluster.yaml manifest, I did a mapping of what I had before and what changed in the meantime. After going through the manifest, I ended up with the below configuration. For this demonstration, my underlying cluster is a k3s cluster.
controlPlane:
distro:
k3s:
enabled: true
extraArgs:
- --tls-san=EXTERNAL IP Address from LoadBalancer
image:
repository: "rancher/k3s"
tag: "v1.31.1-k3s1"
resources:
limits:
cpu: 100m
memory: 256Mi
requests:
cpu: 40m
memory: 64Mi
proxy:
extraSANs:
- YOUR Domain
coredns:
enabled: true
statefulSet:
resources:
limits:
ephemeral-storage: 2Gi
memory: 2Gi
requests:
ephemeral-storage: 400Mi
cpu: 200m
memory: 256Mi
highAvailability:
replicas: 1
security:
podSecurityContext: {}
containerSecurityContext:
allowPrivilegeEscalation: false
runAsUser: 0
runAsGroup: 0
persistence:
volumeClaim:
enabled: auto
retentionPolicy: Retain
size: 2Gi
storageClass: ""
accessModes: ["ReadWriteOnce"]
exportKubeConfig:
server: "https://Your Domain Name:443"
insecure: false
experimental:
deploy:
vcluster:
manifests: |-
---
apiVersion: v1
kind: Namespace
metadata:
name: nginx-app
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: nginx-dev
namespace: nginx-app
spec:
selector:
matchLabels:
app: nginx
replicas: 1
template:
metadata:
labels:
app: nginx
spec:
containers:
- name: nginx
image: nginx:latest
ports:
- containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
name: nginx-dev
namespace: nginx-app
spec:
selector:
app: nginx
ports:
- protocol: TCP
port: 80
targetPort: 80
type: ClusterIP
Notable changes: Include the controlPlane and k3s configuration at the top level. Set the extraSANs to your custom domain. Enable CoreDNS and set the virtual cluster statefulSet details as well. Make changes to the storage requirements that are needed. Use the exportKubeConfig section to expose the cluster with a valid domain. Move the application manifest to be created with the virtual cluster deployment under the experimental section.

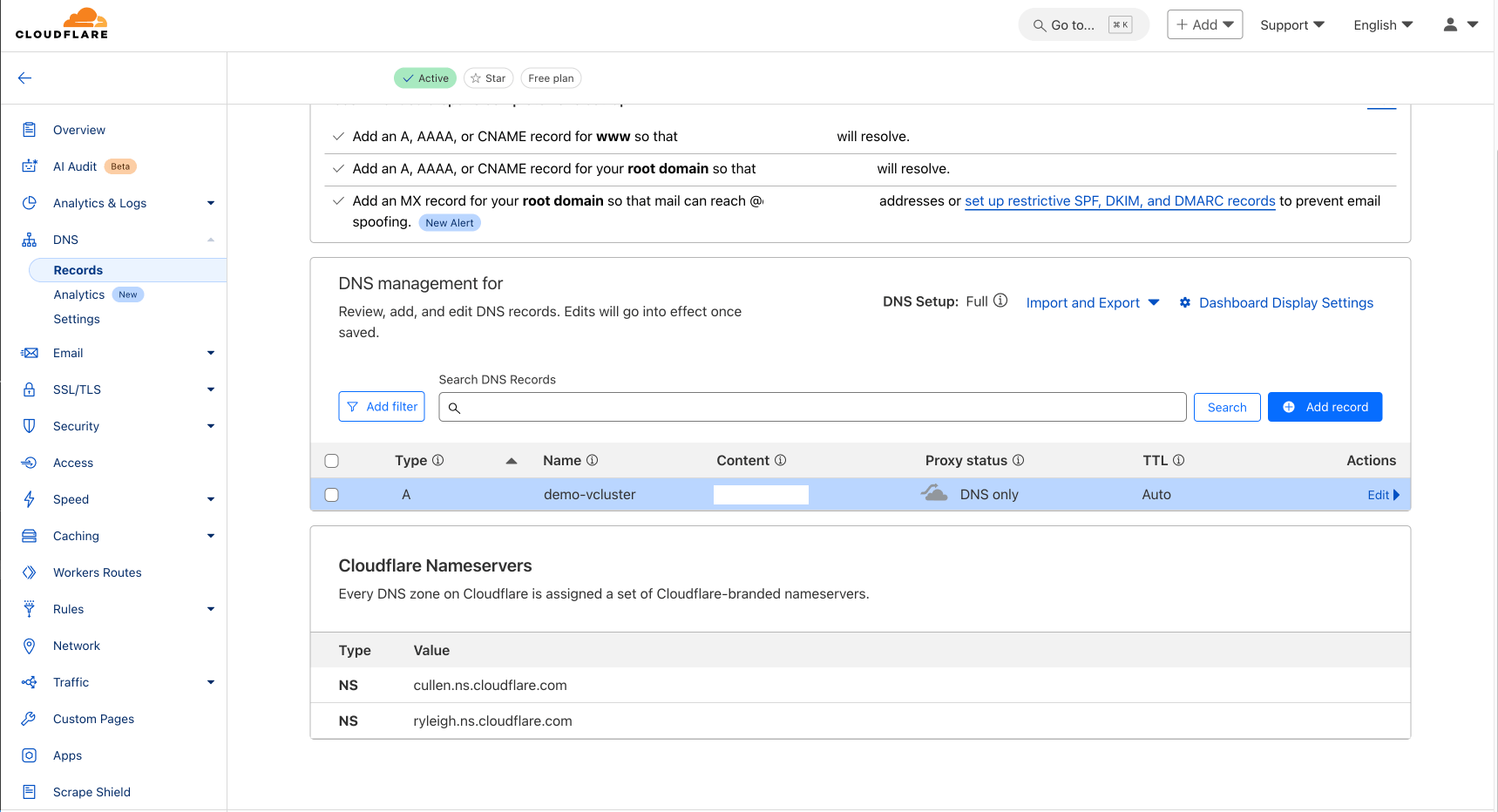

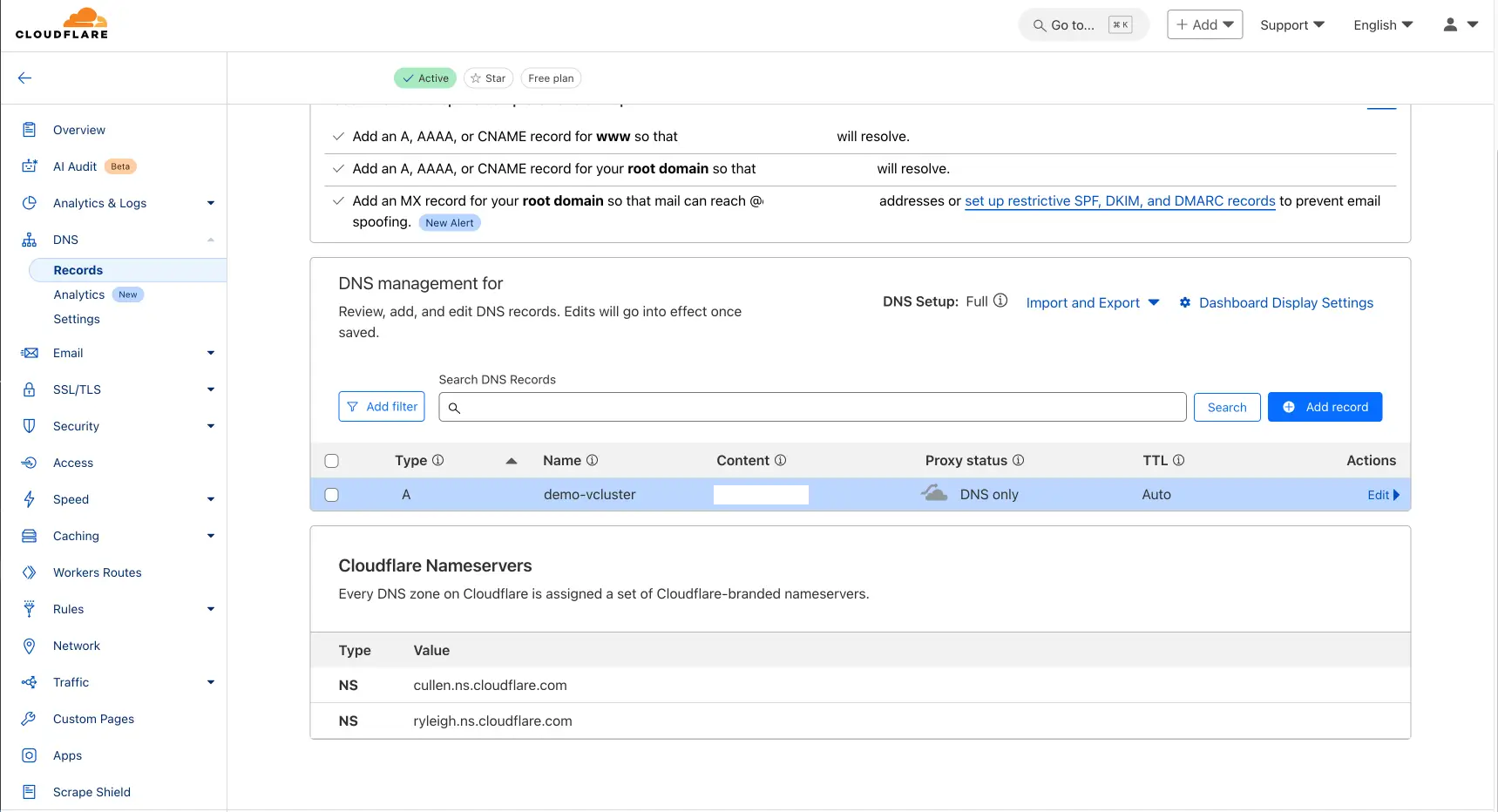

Step 3: Create A Record Cloudflare
Navigate to Home > click your Domain name > from the left-hand side menu choose DNS > Records > Add Record > Save
Step 4: vCluster Installation
As we have the custom values ready, we can proceed with the installation.
$ helm upgrade --install vcluster-dev vcluster \
--namespace dev \
--values /the/path/to/configuration/vcluster.yaml \
--repo https://charts.loft.sh \
--repository-config=''
vCluster Validation
$ helm list -n dev
NAME NAMESPACE REVISION UPDATED STATUS CHART APP VERSION
vcluster-dev dev 1 2024-12-20 08:37:15.71386 +0100 CET deployed vcluster-0.22.0 0.22.0
$ kubectl get pods,svc,secret -n dev
NAME READY STATUS RESTARTS AGE
pod/coredns-bbb5b66cc-88swh-x-kube-system-x-vcluster-dev 1/1 Running 0 22m
pod/nginx-dev-54b9c68f67-sp5d6-x-nginx-app-x-vcluster-dev 1/1 Running 0 13s
pod/vcluster-dev-0 1/1 Running 0 31s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/kube-dns-x-kube-system-x-vcluster-dev ClusterIP 10.43.113.38 <none> 53/UDP,53/TCP,9153/TCP 22m
service/nginx-dev-x-nginx-app-x-vcluster-dev ClusterIP 10.43.171.144 <none> 80/TCP 17s
service/vcluster-dev ClusterIP 10.43.89.195 <none> 443/TCP,10250/TCP 23m
service/vcluster-dev-headless ClusterIP None <none> 443/TCP 23m
service/vcluster-dev-node-k3s-cluster02-prod-e2e5-78cf1e-nod-679736c320 ClusterIP 10.43.144.1 <none> 10250/TCP 14s
service/vcluster-dev-node-k3s-cluster02-prod-e2e5-78cf1e-nod-c0aad56b62 ClusterIP 10.43.64.170 <none> 10250/TCP 22m
service/vcluster-loadbalancer LoadBalancer 10.43.23.1 x.x.x.x 443:31633/TCP 72m
NAME TYPE DATA AGE
secret/sh.helm.release.v1.vcluster-dev.v1 helm.sh/release.v1 1 23m
secret/sh.helm.release.v1.vcluster-dev.v2 helm.sh/release.v1 1 21m
secret/sh.helm.release.v1.vcluster-dev.v3 helm.sh/release.v1 1 18m
secret/sh.helm.release.v1.vcluster-dev.v4 helm.sh/release.v1 1 16m
secret/sh.helm.release.v1.vcluster-dev.v5 helm.sh/release.v1 1 7m22s
secret/sh.helm.release.v1.vcluster-dev.v6 helm.sh/release.v1 1 35s
secret/vc-config-vcluster-dev Opaque 1 23m
secret/vc-k3s-vcluster-dev Opaque 1 22h
secret/vc-vcluster-dev Opaque 5 22m
secret/vcluster-dev-certs Opaque 25 22m
Step 5: Retrieve vCluster Kubeconfig
Once the virtual cluster is deployed, we can retrieve the kubeconfig by decoding the configuration of the secret with the name vc-cluster-dev.
$ kubectl get secret vc-vcluster-dev -n dev --template={{.data.config}} | base64 -d > /the/path/to/configuration/vcluster-dev.yaml
Even if the exportKubeConfig.server configuration was set to a custom domain, the kubeconfig still holds the localhost value. Ensure you update localhost:8443 to your domain:443.
Validation
$ export KUBECONFIG=/the/path/to/configuration/vcluster-dev.yaml
$ kubectl get nodes,ns
NAME STATUS ROLES AGE VERSION
node/k3s-cluster02-prod-e2e5-78cf1e-node-pool-9a30-1ibhr Ready <none> 2m16s v1.31.1+k3s1
node/k3s-cluster02-prod-e2e5-78cf1e-node-pool-9a30-l28od Ready <none> 24m v1.31.1+k3s1
NAME STATUS AGE
namespace/default Active 22h
namespace/kube-node-lease Active 22h
namespace/kube-public Active 22h
namespace/kube-system Active 22h
namespace/nginx-app Active 2m20s
vCluster - Nginx Validation
$ kubectl get all -n nginx-app
NAME READY STATUS RESTARTS AGE
pod/nginx-dev-54b9c68f67-sp5d6 1/1 Running 0 2m41s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/nginx-dev ClusterIP 10.43.171.144 <none> 80/TCP 2m44s
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/nginx-dev 1/1 1 1 2m46s
NAME DESIRED CURRENT READY AGE
replicaset.apps/nginx-dev-54b9c68f67 1 1 1 2m42s
Resources
- vCluster Documentation: https://www.vcluster.com/docs/vcluster/deploy/basics
- vCluster External Access: https://www.vcluster.com/docs/vcluster/next/manage/accessing-vcluster
- vCluster Schema Validation: https://github.com/loft-sh/vcluster/blob/main/chart/values.schema.json
✉️ Contact
If you have any questions, feel free to get in touch! You can use the Discussions option found here or reach out to me on any of the social media platforms provided. 😊
We look forward to hearing from you!
Conclusions
We successfully deployed a vCluster on K3s in just a few simple steps! 🚀 I will be diving deeper into vCluster and exploring more advanced configurations in upcoming posts.
That’s a wrap for this one! 🎉 Thanks for reading, and stay tuned for more exciting updates!
