Next-Level Kubernetes Deployment and Management: Sveltos and Flux in Action

Summary:

This post picks up where the Flux Operator blog left off, diving deeper to demonstrate the power of Sveltos and Flux for Kubernetes add-on deployment and management. Join the club as we explore what next-level Kubernetes deployments and management look like in action!

Scenario

Sveltos is a Kubernetes add-on controller that simplifies the deployment and management of Kubernetes add-ons and applications across multiple clusters, whether on-prem, in the cloud or in multitenant environments. To achieve a GitOps approach for our deployments, Sveltos integrates nicely with Flux.

What does this mean for us? We can not only use Sveltos to manage the Flux installation on the Kubernetes management cluster, but also utilise the advanced Sveltos capabilities like templating, dynamic pre-instantiation, and Event Driven Framework to make our deployments as dynamic and scalable as possible. If you are ready to proceed, let's dive into it! 😊

note

The Kubernetes management cluster in our case is the brain of the add-on and application deployments to a fleet of clusters.

Lab Setup

+-------------------------------+---------------------+
|          Deployment           |       Version       |
+-------------------------------+---------------------+
|            RKE2               |   v1.31.9+rke2r1    |
|           Sveltos             |       v1.0.0        |
|       Flux Operator           |       v0.25.0       |
|            Flux               |       v2.6.4        |
| Self Managed GitLab Instance  |        v18.1        |
+-------------------------------+---------------------+

Prerequisites

1. A Kubernetes cluster
2. Familiarity with Kubernetes manifest files
3. Familiarity with Flux and GitOps practices

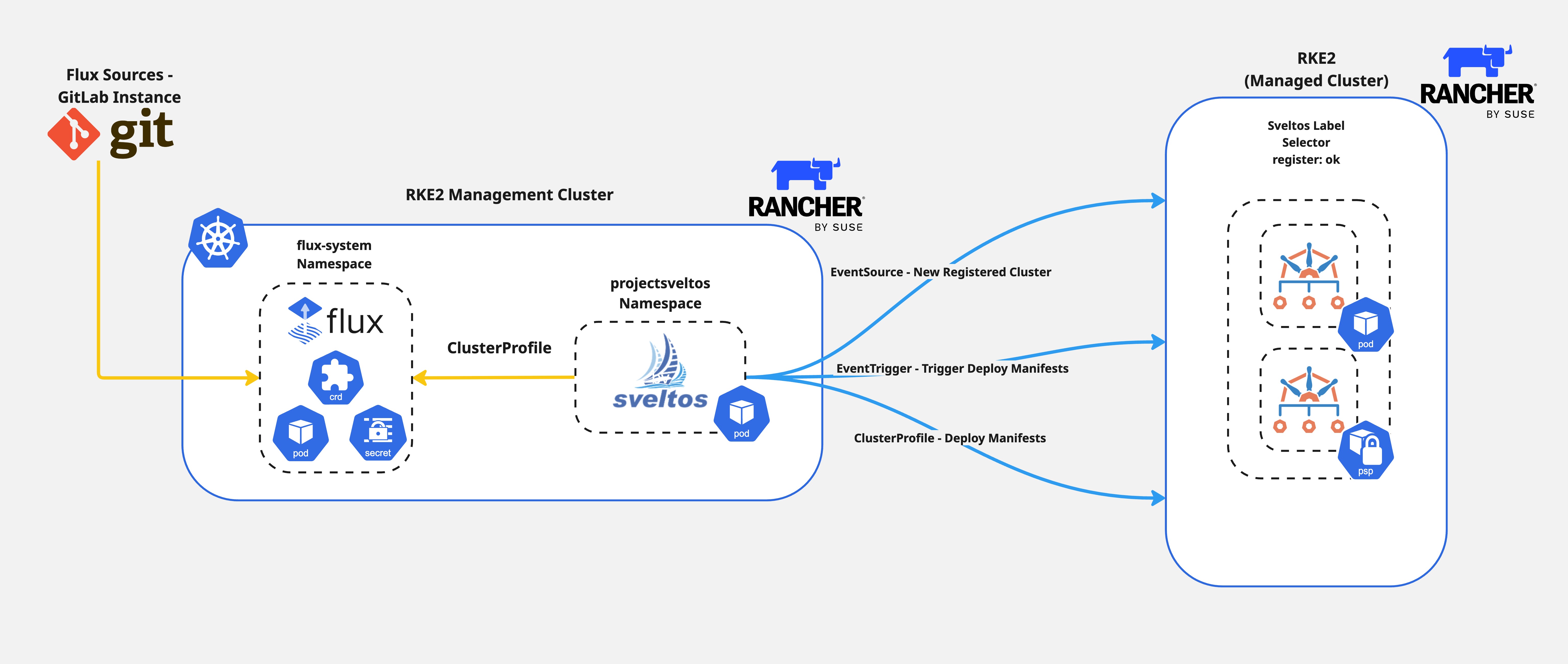

Diagram

Sveltos Installation

Before we start exploring the setup, we need to install Sveltos on a Kubernetes management cluster. I like to work with Helm charts, thus we will install Sveltos using this approach. Additionally, Mode 1 is the preferred installation method. To explore more about the different installation methods, have a look here.

Helm Chart Installation

Follow the commands below and install Sveltos on a Kubernetes management cluster.

$ export KUBECONFIG=<directory of the management kubeconfig>

$ helm repo add projectsveltos https://projectsveltos.github.io/helm-charts
$ helm repo update

$ helm install projectsveltos projectsveltos/projectsveltos -n projectsveltos --create-namespace --version=1.0.0

Validation

$ kubectl get pods -n projectsveltos

$ kubectl get sveltosclusters -A

Label Management Cluster

It is very common to use Sveltos and deploy add-ons and applications to the management cluster where Sveltos is installed. For this demonstration, we will add the Kubernetes label cluster=mgmt.

$ kubectl label sveltoscluster mgmt -n mgmt cluster=mgmt

By using the Sveltos label matching approach, we can utilise the Sveltos Custom Resource Definitions (CRDs) and deploy Flux to the management cluster.

Flux Installation

Flux ClusterProfile

We will use a Sveltos ClusterProfile to install the Flux-Operator as a Helm chart and include all the required resources for the desired setup. The official oci registry is used to pull the Flux Operator Helm chart. With Sveltos, we can deploy ConfigMap and Secret resources that contain information about the cluster. That means we can add the Flux Instance, the GitLab secret and the GitRepository resources into a ConfigMap and instruct Sveltos to deploy it to the management cluster.

Flux Operator ClusterProfile

---
apiVersion: config.projectsveltos.io/v1beta1
kind: ClusterProfile
metadata:
  name: flux
spec:
  clusterSelector:
    matchLabels:
      cluster: mgmt
  helmCharts:
  - repositoryURL: oci://ghcr.io/controlplaneio-fluxcd/charts
    repositoryName: flux-operator
    chartName: flux-operator
    chartVersion: 0.25.0
    releaseName: flux-operator
    releaseNamespace: flux-system
    helmChartAction: Install
  policyRefs:
  - name: flux-resources
    namespace: default
    kind: ConfigMap

flux-resources ConfigMap

apiVersion: v1
data:
  flux_resources.yaml: |
    ---
    apiVersion: fluxcd.controlplane.io/v1
    kind: FluxInstance
    metadata:
      name: flux
      namespace: flux-system
      annotations:
        fluxcd.controlplane.io/reconcileEvery: "1h"
        fluxcd.controlplane.io/reconcileTimeout: "5m"
    spec:
      distribution:
        version: "2.x"
        registry: "ghcr.io/fluxcd"
        artifact: "oci://ghcr.io/controlplaneio-fluxcd/flux-operator-manifests"
      components:
        - source-controller
        - kustomize-controller
        - helm-controller
        - notification-controller
        - image-reflector-controller
        - image-automation-controller
      cluster:
        type: kubernetes
        multitenant: false
        networkPolicy: false
        domain: "cluster.local"
      kustomize:
        patches:
          - target:
              kind: Deployment
              name: "(kustomize-controller|helm-controller)"
            patch: |
              - op: add
                path: /spec/template/spec/containers/0/args/-
                value: --concurrent=10
              - op: add
                path: /spec/template/spec/containers/0/args/-
                value: --requeue-dependency=5s
    ---
    apiVersion: v1
    data:
      password: <BASE64 encoded string>
      username: <BASE64 encoded string>
    kind: Secret
    metadata:
      name: gitlab-creds
      namespace: flux-system
    type: Opaque
    ---
    apiVersion: source.toolkit.fluxcd.io/v1
    kind: GitRepository
    metadata:
      name: staging-env
      namespace: flux-system
    spec:
      interval: 1m0s
      ref:
        branch: main
      secretRef:
        name: gitlab-creds
      timeout: 60s
      url: https://<your GitLab domain>/<group name>/<repository name>.git
kind: ConfigMap
metadata:
  name: flux-resources
  namespace: default

tip

Ensure the ConfigMap with the name flux-resources is deployed to the management cluster before deploying the Sveltos ClusterProfile. The resources need to exist in the cluster for Sveltos to deploy them.

Dynamic Flux Sources Deployment

As mentioned in the beginning, we can use the advanced Sveltos Event Framework and perform "magic" 🪄✨ when it comes to application deployment from defined Flux sources. The approach allows us to dynamically target Sveltos managed clusters using the information located in the Kubernetes management cluster.

EventSource

To trigger actions based on concrete events, Sveltos allows us to utilise the EventSource resource and define what the triggered action will perform on the managed clusters. Check out the documentation and define your own EventSources.

For this demonstration, the trigger is every new registered cluster with the label set to register: ok. The following is an example of how the EventSource manifest looks.

---
apiVersion: lib.projectsveltos.io/v1beta1
kind: EventSource
metadata:
  name: cluster-registration
spec:
  collectResources: true
  resourceSelectors:
  - group: "lib.projectsveltos.io"
    version: "v1beta1"
    kind: "SveltosCluster"
    labelFilters:
    - key: register
      operation: Equal
      value: ok

Once a new cluster with the label set to register: ok is registered with Sveltos, we use the following EventTrigger resource to dynamiccally deploy Flux syncronised resources for the new registered managed clusters.

EventTrigger

---
apiVersion: lib.projectsveltos.io/v1beta1
kind: EventTrigger
metadata:
  name: deploy-manifests
spec:
  sourceClusterSelector:
    matchLabels:
      cluster: mgmt
  destinationCluster:
    name: "{{ .Resource.metadata.name }}"
    namespace: "{{ .Resource.metadata.namespace }}"
    kind: SveltosCluster
    apiVersion: lib.projectsveltos.io/v1beta1
  eventSourceName: cluster-registration
  oneForEvent: true
  policyRefs:
  - kind: GitRepository
    name: staging-env
    namespace: flux-system
    path: "test/{{ .Resource.metadata.name }}"

tip

Looking at line 21, we instruct Sveltos to deploy any Kubernetes manifests included under the repository directory test/<cluster-name>/. If the directory does not exist, Sveltos will not deploy something to the cluster.

Validation

Once the EventSource and the EventTrigger resources are deployed to the Kubernetes management cluster, we can check and evaluate them. The eventsource and the eventsummary resources are what we look for.

$ kubectl get eventsource,eventsummary

$ kubectl get eventsource <name> -n <namespace> -o yaml
$ kubectl get eventsummary <name> -n <namespace> -o yaml

The status of the output above is what we want to validate. If the resources are provisioned, Sveltos deployed the Flux syncronised resources to the cluster and those should already been visible to the managed cluster.

Conclusion

Throughout this series, we demonstrated how to automate the installation of the Flux Operator, along with all the necessary resources for a fully functional setup. We showcased the power of Sveltos, leveraging the Event Driven Framework to seamlessly automate deployments to newly registered clusters. Using the right tools, we can achieve a high level of automation in a straightforward and meaningful way!

Resources

• Flux Operator Documentation
• Sveltos Quick Start
• Sveltos Event Framework
